    gridXense Professional II 3/100 M-Bus | 3-phase kWh meter 3/100 A, direct measurement

    View everything from the category gridXense - Kwh-meters
    Welke lengte heeft u nodig?
    /
    U heeft 0 stuks nodig voor 0 euro incl. BTW
    gridXense Professional II 3/100 M-Bus
    £ 195,00
    Ask for quotationAdd to wish list
      Stock: 99 piece(s)
     Order before 13:00 for same-day dispatch
    Add to favorites
    • Product description and specifications
    • Documents
    • Ask a Question

    Product description

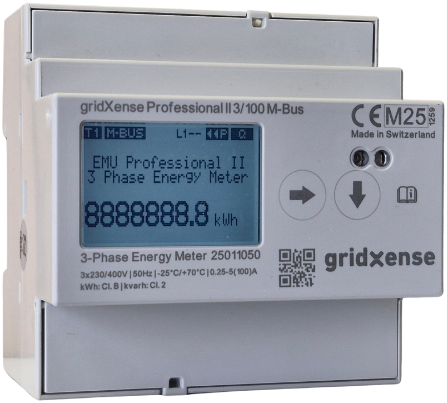

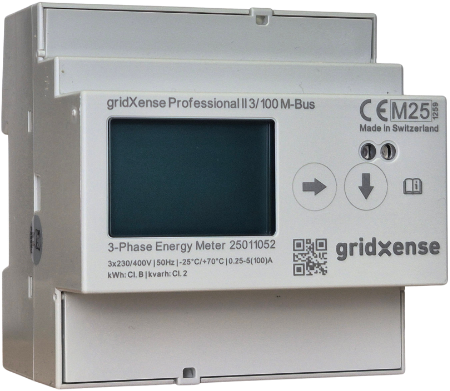

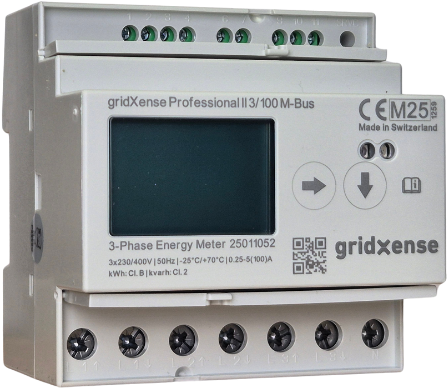

    The gridXense Professional II 3/100 M-Bus is an electronic 3x 230/400VAC 3-phase kWh meter for DIN rail mounting and direct measurement up to 100A. The meter has various functions including measuring actual and reactive consumption, calculating the power factor (cos phi), and providing a clear insight into consumed and generated energy (import/export). The meter is equipped with an integrated M-Bus interface.

    The meter is MID B & D approved for billing purposes, certified for PV systems (according to DIN CLC / TR 50579: 2012), and suitable for energy management systems according to ISO50001. It is fully compatible with the gridXense energy management software for monitoring and obtaining a clear view of all consumption data. The meter is protected against tampering and has a sealable connection cover. In addition, all configurations are logged and archived.


    Specifications of the gridXense Professional II 3/100 M-Bus:

    • Installation: 35mm DIN rail or front installation with the help of a mounting frame
    • Dimensions (width x height x depth): 90 (5TE) x 91 x 72mm
    • LCD display: 38 x 28mm, 8 digits with backlight
    • Protection class: housing IP51, connections IP20
    • Environmental conditions: electrical E2, mechanical M2
    • Suitable for: energy import & export - consumption & production
    • Frequency range: 40-65Hz
    • Nominal voltage (Un) N-L: 230V (+/-20%)
    • Nominal voltage (Un) L-L: 400V (+/-20%)
    • Nominal current (In): 100A
    • Communication interface: M-Bus interface according to EN13757-2 & EN13757-3
    • Additional communication interface: S0, optical
    • Pulse frequency and length: 1 - 10,000 pulses per kWh / kvarh, adjustable incl. pulse length
    • Measurement of actual and reactive consumption in 4 quadrants
    • Energy tariff classes: 4-tariff
    • Tariff control: internal
    • Calibrated: yes
    • Approved: MID
    • Accuracy class: B

    Documents

    gridXense_professional_II_fortop_Quick-start_e_d.pdf
    gridXense_professional_II_fortop_Manual_e.pdf
    gridXense_professional_II_fortop_Datasheet_e.pdf
    gridXense_professional_II_fortop_Manual_modbus_interface_e.pdf
    gridXense_professional_II_fortop_3D-files.zip

    Specifications

    Type3 phase, direct up to 100A
    SeriesgridXense
    Width90 mm
    Communication protocol

    A communication protocol is a set of rules and standards used to enable the exchange of data between different devices or systems.

    		Communication protocolM-Bus
    Digital inputsTariff switching
    Memory

    Janitza an EMU measuring instruments are equipped with memory, allowing measurement values to be stored in memory for extended periods of time.

    		MemoryYes
    Pulse output

    The pulse output is an electrical signal that is generated every time a certain amount of energy is consumed. The signal can be used to remotely monitor and measure energy consumption.

    		Pulse outputConfigurable S0 pulse output
    TariffDouble tariff
    ApprovalMID B + D
    Brandfortop
    CategorygridXense - Kwh-meters
    EAN Code6152837580584
    Product codeFP001004
    Supplier codeP20A000M
    Unitst
