Power Analysers
Power Analysers are used for the continuous measurement and monitoring of the quality of power (power quality), the load of transformers and generators and the recording of voltage dips, peaks and transients. The power analysers are equipped with sufficient internal memory, so that measured values can be stored in the memory for a longer period of time. The power analysers are available as mounting module for panel mounting (UMG 509-PRO) and as DIN rail mounting (UMG 604-PRO).
Embedded web interface
Janitza's power analysers are equipped with an intuitive web interface for PC, tablet and smartphone. The web interface provides a kWh reporting function, embedded line writer, power quality reports generator and an analysis tool for voltage dips and peaks.
Interfacing
All analysers have 2 digital inputs and outputs, a temperature measurement input, an Ethernet port (TCP/IP), Profibus and RS485 port. Through these ports, Janitza supports many protocols such as Modbus, Profibus, PROFINET, Bacnet, HTTP, etc. with which the power analysers can easily be connected in the above systems.
View Janitza Power Analysers
Features of Power Analysers
Area of application

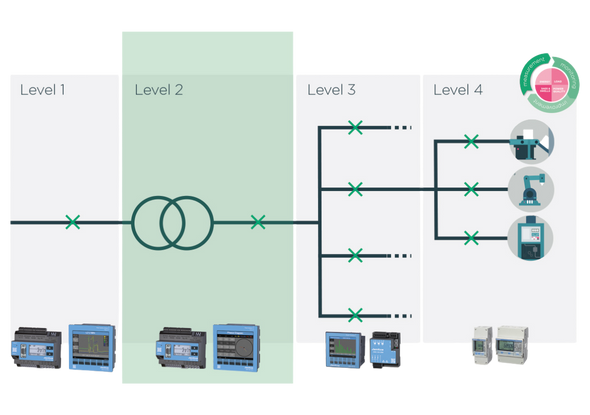

The power analysers UMG 604-PRO and UMG 509-PRO are the most complete power analysers for applications on the low-voltage side of the mains transformer or for generator measurements. The power analyser is physically placed on the incoming fields of the low-voltage main manifold. The UMG 509-PRO power analyser is widely used in large hospitals, data centers and in the process industry.
Features of power analysers:
- 4 quadrant measurements in IT, TN, and TT networks
- 5 voltage and 4 current measurement inputs (3 phases + zero)
- 2 additional current measurement inputs for differential current measurement
- Measurement according to IEC61000-4-30 - class A
- Scan speed: 20kHz
- Calculation of more than 2000 variables per cycle (200ms)
- JASIC graphical programming functions
- Analysis of harmonics, interharmonics and resonances
Embedded webinterface
Janitza's power analysers are equipped with an embedded web interface. With this web interface it is possible to visualize measured values without additional software. A standard web browser is sufficient to view the measured values. Thanks to the responsive design, the visualization and operation is also possible via smartphone, tablet or PC.
Features embedded web interface:
- Real-time visualization of all imaginable quantities
- Integrated consumption manager
- Embedded line writer for current and historical values
- Analysis tool for voltage dips, peaks and transients
- Automatic web-based report generator for power quality
- Remote control of the power analyser
Power analyzer UMG 509-PRO - Janitza
Janitza UMG 509-PRO Power Analyser
The UMG 509-PRO power analyser from Janitza has been specially developed for application behind the mains transformer and has a color display with a English web interface. The Power Quality of an electrical installation can be read directly. Voltage dips, peaks and transients are recorded and stored as 'event'. Problems with the power quality are quickly detected by the power analyser, because the quality of voltage and current are automatically reported in accordance with the applicable standards.
Integrated dashboard
The power analyser has an integrated dashboard that can be accessed via a web browser. This way you can access your meter at any time with the help of a mobile, tablet or desktop.
Due to the many communication protocols that the meter supports, integration into an existing system is easy to achieve. The Janitza UMG 509-PRO power analyser has an IP gateway function so that all underlying meters are read out via the IP-port.
The 5th and 6th current transformer inputs continuously monitor earth fault currents. As a result, a periodic insulation test of your installation is no longer necessary. Partly due to the integrated temperature measurement, this all-rounder is the ideal analyser for a 'total measurement' on the low-voltage side of your power transformer.
Features Power analyser UMG 509-PRO:
- Measuring consumption (kWh, kvarh, kVAh)
- Measuring power quality parameters such as harmonic to the 63rd order
- Measuring short interruptions, transients and peaks Measuring earth fault currents
- Measured value generator for building management and automation systems
Technical properties UMG 509
- Fourier analysis to the 63rd order, individually for U-LN, U-LL, I, P, Q
- Every 200ms more than 1500 variables are determined according to IEC61000-4-30
- Detection of transients> 50us, short interruptions and peaks> 10ms
- 4 voltage and 6 current measurement inputs
- PT temperature measurement input
- Continuous sampling of all voltage and current channels with 20kHz
- Datalogger and event logger (250MB Flashdisk) 2 digital inputs and
- 2 digital outputs
- RS485 (Modbus RTU, Modbus Master)
- Profibus DP / VO alternative
- Ethernet (web server, e-mail, optional with BACnet)
- Program custom functions via Jasic
- Modbus gateway function for linking Modbus devices to IP
Power Analyser UMG 509-PRO
- PQ analyser, kWh meter, earth fault current meter, IP gateway, logger, PLC and web server in one housing
- To be used as an IP gateway for Modbus meters. Underlying meters are therefore accessible via the IP network
- Protocols such as RS485 (Modbus RTU and Profibus) Ethernet TCP / IP, BACnet IP, HTTP, FTP, SNMP, SMTP, SNTP or DNS enable easy integration into existing installations
- Direct insight into the power quality status of the installation:
- Status for dips, peaks and transients with direct link to analysis page
- Status according to EN50160 and IEC61000-2-4 with direct link to analysis page
- Status for earth fault current measurement with direct link to analysis page
- Integrated web-based line writer for current and historical measurement values
- Optimal display on PC, tablet and smartphone (responsive design)
- Earth fault current measurement for determining the quality of the insulation
- 256MB of memory, enough for storage of 10 million measured values
- Includes English language configuration software GridVis
10 reasons to place a Janitza umg 509-pro behind the network
Text: Arjan Pit, measurement specialist
The janitza umg 509-pro power analyser has been specially developed for use behind the mains transformer. Why is this measurement so important and is the umg 509-pro the ideal meter for this?
10 reasons:
- Correct power measurement of the transformer at electronic loads
- Fully automatic recording and reporting of voltage dips
- Fully automatic registration and reporting of power quality
- Current measurement in the neutral conductor prevents overload
- Integrated differential current measurement prevents danger and fire
- Intuitive large color screen for reading without using a pc or smartphone
- Embedded web interface with all ems functions for pc, tablet or smartphone
- Integrated transformer temperature measurement
- Readout in dcem cloud via the mobile network
- Easy to integrate into existing systems
Read more about the 10 reasons
Power analyzer UMG 604-PRO - Janitza
Janitza UMG 604-PRO - Power Analyser
Insight into consumption, faults and power quality
Short interruptions, dips, harmonics or a too low mains voltage? They can all lead to high costs. With the Janitza UMG 604-PRO power analyser, these can all be recognized and forwarded via e-mail or SMS. The meter is a PQ analyser, kWh meter with 8 rates, IP gateway, logger, PLC and web server in one housing.
Power analyser UMG 604-PRO for a total measurement
On the integrated website of the power analyser UMG 604-PRO you immediately see the status of the power quality of your electrical installation. The website is accessible via PC, laptop, tablet and smartphone. By being able to automatically report the quality of voltage and current according to the applicable standards, power quality problems are quickly detected. Partly due to the integrated temperature measurement, this all-rounder is the ideal analyser for a 'total measurement' on the low-voltage side of your power transformer.
Features of the UMG 604-PRO power analyser:
- Measuring consumption parameters
- Measuring power quality parameters such as harmonic to the 40th order
- Measuring short interruptions, transients and peaks
- Measured value generator for building management and automation systems
Characteristics Power analyser UMG 604-PRO
- PQ analyser, kWh meter, earth fault current meter, IP gateway, logger, PLC and web server in one housing
- To be used as an IP gateway for Modbus meters; underlying meters are accessible via the IP network
- Simple connection in an existing installation with protocols such as RS485 (Modbus RTU and Profibus), Ethernet TCP / IP, BACnet IP, HTTP, FTP, SNMP, SMTP, SNTP or DNS
- Direct insight into the power quality status of the installation:
- Status for dips, peaks and transients with direct link to analysis page
- Status according to IEC61000-2-4 with direct link to analysis page
- Status for earth fault current measurement with direct link to analysis page
- Integrated web-based line writer for current and historical measurement values
- Optimal display on PC, tablet and smartphone (responsive design)
- 128Mb memory for storage of 5 million measured values
- Includes English-language configuration software GridVis
Technical properties UMG 604-PRO
- Fourier analysis to the 40th order, individual for U-LN, U-LL, I, P, Q
- Every 200ms determination of more than 800 variables according to IEC61000-4-30
- Detection of transients> 50us, short interruptions and peaks> 20ms
- 4 voltage and 4 current measurement inputs
- PT temperature measurement input
- Continuous sampling of all voltage and current channels with 20kHz
- Datalogger and event logger (128MB Flashdisk)
- 2 digital inputs and 2 digital outputs
- RS485 (Modbus RTU, Modbus Master)
- Profibus DP / VO alternative
- Ethernet (web server, e-mail, optional with BACnet)
- Program custom functions via Jasic
- Modbus gateway function for linking Modbus devices to IP View more technical specifications
The 11 advantages of Janitza power analysers
- A correct and stable power measurement with electronic loads
- Due to the wide range of Janitza a suitable meter is available for every spot in your installation
- Fully automatic registration and reporting of voltage dips
- Fully automatic registration and reporting of power quality
- Current measurement in the neutral conductor prevents overload
- Integrated differential current measurement prevents danger and fire (UMG-512)
- Embedded web interface with all EMS functions for PC, tablet or smartphone
- Integrated transformer temperature measurement
- Readout in DCEM Cloud via the mobile network
- Easy integration into existing systems
- Free customized advice
