Signal towers and stack lights
Signal towers and stack lights are important visual and auditory signaling devices for use in machines or in automation processes. The color or state of the signal tower indicates a certain command. Standard signal towers and signal columns are equipped with a buzzer. Auer Signal is a technology leader in the field of optical and acoustic signal devices such as signal towers, signal lights, buzzers, horns and sirens.

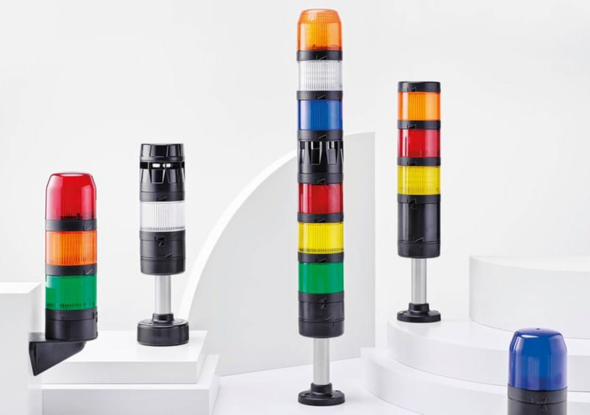

Modular signal towers and stack lights
Modular signal towers are available in several variants as surface mounted, wall and panel mounting versions. Optical, acoustic and optical-acoustic models are also available. Modular signal towers are available with corner mounting, tube mounting, floor mounting and wall mounting elements.
Highest signal tower - Modul Perfect - PC7
The Modul Perfect 70, or PC7 for short, is one of the most versatile signal towers. The signal tower is up to 6 times brighter than the competition and up to 13 times brighter than the previous model Modul-Signal 70. With 7 positions is the PC7 one of the most versatile signal towers. The unique, patented contact allows up to 7 positions thanks to 8 internal contacts. The upper module is even brighter than the standard light modules and has an extensive, hemispherical signal effect. The diffuser films can be placed effortlessly in each individual module, even at a later time. Read more about the Modul Perfect PC7.
The cost-effective M12 connector base
The M12 connector base is the perfect solution for applications where fast, simple and cost-effective installation of the signal tower a top priority is.
Features Modul Perfect PC7:
- Very bright LEDs (42 Cd)
- Voice output module for playing audio files
- Resistant to temperatures from -30°C to +70°C
- Protection class IP66

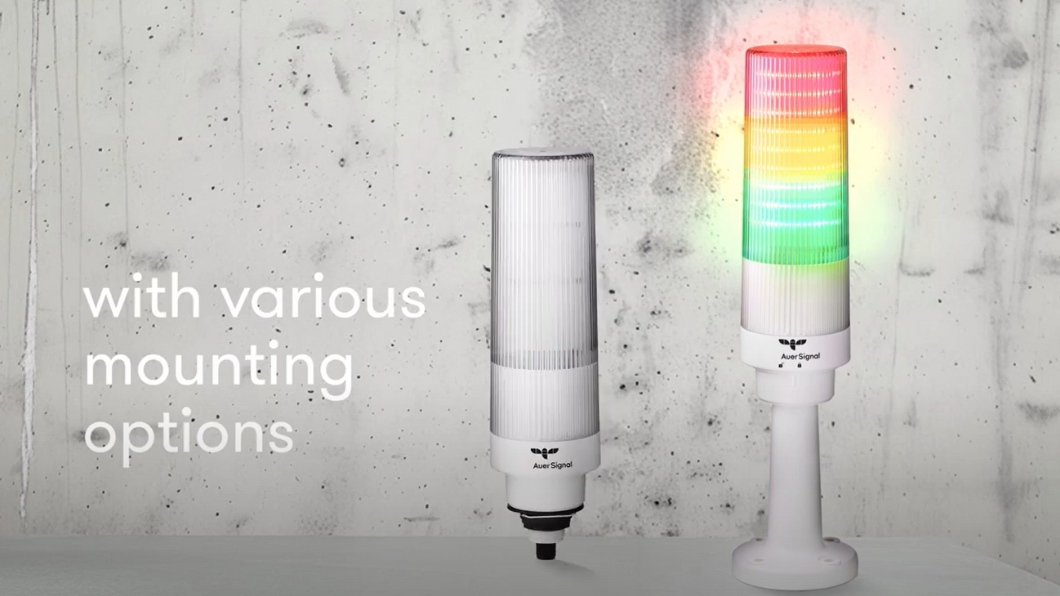

The MT60 series white LED signal towers from Auer Signal – a complete solution!
Looking for a practical and complete signal tower for use on a machine, for example? Then the Auer Signal MT60 series signal towers are the right choice. This white series of LED signal towers is characterised by the fact that they are ready to use straight out of the box and are not built in a modular way. Each MT60 signal tower features three LEDs with excellent all-round light distribution.
The signal towers can be mounted in various ways, ensuring a suitable solution is available for every application and situation. The MT60 signal towers are rated IP66, and the housing has an IK07 impact resistance classification. In addition, they are resistant to temperatures ranging from -25 °C to +50 °C, making them suitable for more demanding environments.
The fact that Auer Signal has launched the MT60 series with these specifications as a base model once again confirms that Auer Signal stands for high quality and reliability.
Video: MT60 signal tower
Signal tower Modul-Compete 50 - CT5
The Modul-Compete 50 - CT5 signal tower from Auer Signal is very competitive in price. The optimized signal tower CT5 has the same central contacts as the PC7, but has been developed exclusively for classic industrial 24 V DC applications. For standard applications where high quality and an attractive price are required, the CT5 is the right choice. Read more about the CT5 signal tower.
Features Modul Compete 50:
- Cost-effective modular 50 mm Ø signal tower for classic 24 V DC applications in industry
- Up to 5 positions possible
- Low pollution due to flat smooth design on the outside
- Protection class IP65
Colours LED modules Signal tower CT5

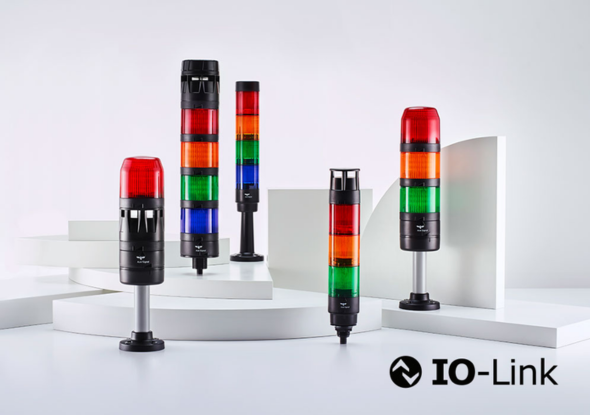

Modular stack lights with LED
Modular signal lamps and signal towers make is possible to see and hear the status of a specific machine or technical installation from a distance. Modular signal towers can be equipped with optical, acoustic and optical-acoustic signaling modules. The ECOmodul signal tower from Auer Signal has many different mounting options, so you can assemble the signal tower exactly as you wish.
ECOmodul signal tower
The ECOmodul signal tower uses very bright LED technology. The modular signal tower is equipped with optical modules and a buzzer for acoustic safety functions. The connection is very simple, namely via a spring pressure of push0in technology. View ECOmodul signal towers.
Characteristics:
- Powerful LED modules, continuous, blink or flash light
- Very long life, vibration resistant and lower energy consumption
- Modular signal towers 40, 60 and 70 mm
- Buzzer and alarm modules
Signal tower for wall mounting - Half-Dome
The modular signal tower Half-Dome for wall mounting from Auer Signal is a high-quality signal tower for universal applications, such as installation on walls or directly on the machine. With a high protection class of IP65, the Half-Dome signal tower is suitable for both indoor and outdoor usage.
180° viewing angle
The signal tower has a special lens optic with a reflective coating for optical signaling and visibility from any viewing angle (180°). The modular signal tower has a maximum of six modules, five LED modules and one buzzer (70-90 dB) in the upper enclosure area. Read more about the modular signal tower Half Dome from Auer Signal.
Characteristics:
- 180 ° viewing angle
- Individually adjustable sound pressure (70-90 dB)
- SPS fit
- 12 VAC / DC, 24 VAC / DC, 110/120 VAC and 230/240 VAC
- Certified according to UL type 4 / 4X / 13
The smallest signal tower series
The ECOmodul 40-series of Auer signal with a diameter of 40 mm is the smallest modular signal tower series in the world. Only the Ø 40 mm signal tower of the ECOmodul series is available with an LED multi strobe or multi color strobe.
Put your own signal tower together
You can choose from pre-assembled towers or you can put together your own signal tower with both optical and acoustic modules (80 dB). The 40 series can withstand temperatures of -30 °C and + 60 °C. The signal tower has a maximum of 5 modules or 10 modules using a double bracket.
Characteristics:
- User-friendly connection technology
- PLC-fitting
- IP66 degree of protection
- UL type 4 / 4X / 13
- Extensive range of mounting types
The ECOmodul signal towers are available with different diameters: 40 mm, 60 mm and 70 mm.
diameter: 40 mm diameter: 60 mm diameter: 70 mm
Optical and acoustic signal lamps
In addition to (modular) signal towers, standalone signal lights are also available. Signal lights can be supplied as individual lights or equipped with an acoustic module.
Signal lights for various applications
Signal lights are available in a range of colours: red, green, yellow, blue, orange, and clear. They are offered with LED, incandescent, halogen, or xenon light sources. Signal beacons can draw extra attention by flashing, rotating, or emitting a steady light. Combined optical and acoustic signalling options are also available. For use in chemical or heavy industry environments, ATEX-certified signal lights are offered.
