The mMD series ATEX signal lamps from Auer Signal is an all-round series of signal lamps. The mMD series features multicolour LEDs as the light source, offers various signalling functions, and is available in 2 different voltages. The signal lamps are made of plastic and are suitable for use in ATEX zones 2 and 22.
Various Signalling FunctionsThe signal lamps in the mMD series offer various signalling options. In addition to continuous light, it is also possible to choose for the lamp to flicker or flash. The signalling method (continuous, flicker, or flash) can be set for each colour. The many signalling options make the mMD series widely applicable, from signal lamps for machinery to signal lamps for (acute) danger.

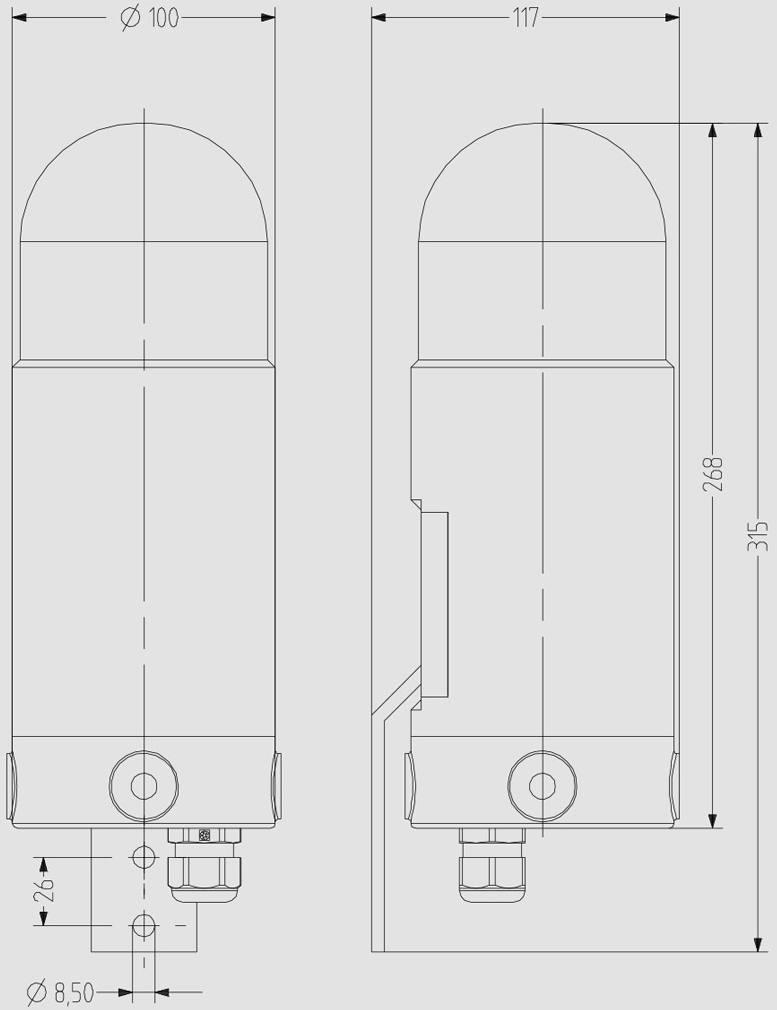

HousingThe mMD signal lamp series has a Ø 103 mm polycarbonate plastic housing and lens (transparent). The mounting bracket is made of stainless steel. The lamps have an IP66 classification (IEC 60529) and are suitable for use in ATEX zones 2 and 22. For connection, you can choose between a 24 VDC or 230 VAC version, both versions equipped with an M20 cable gland. The lamps are suitable for use in temperatures from -20 °C to +50 °C.
Key Features of mMD ATEX Signal Lamps:
- Equipped with multicolour LEDs
- Colours: red, green, blue, yellow, or white light
- Various signalling functions: continuous, flicker, and flash
- Polycarbonate housing and lens
- Stainless steel mounting bracket
- Suitable for use in ATEX zones 2 and 22
- Available in 2 different voltages (24 VDC and 230 VAC)
- IP66 classified (according to IEC 60529 standard)
- Suitable for temperatures from -20 °C to +50 °C
- Cable entry: M20 cable gland
