Universal energy meter
Universal meters from Janitza are available in both panel mounted and DIN rail versions and can be equipped with various communication protocols. Depending on the type, the meters are provided with sufficient memory to store measurement profiles.
Determine the right load
Contemporary measurement technology, coupled with high sample rates, ensures precise measurement of the power consumption of electronic loads like frequency converters, LED lighting, and charging stations. This way there are no 'holes' in the consumption measurement and the correct load is determined. The UMG 96RM series is suitable for panel mounting while the UMG 103-CBM is suitable for DIN rail mounting.
Interfacing
Depending on the model, the Janitza Universal Meters are delivered with different bus protocols. Modbus RTU over RS485, Modbus TCP over IP, Profibus, Profinet, Bacnet IP, M-Bus, making it possible to integrate into almost all overhead systems.
View universal meters in the Product Portal Ask your questions
.png "Universal energy meters - Power management - Janitza")
Features - universal meters
Application area
The Janitza universal energy meters are often used to measure outgoing fields in low-voltage main distribution, in sub-distribution or in bus-bar terminal boxes.
Features - UMG 96-RM universal meter:
- 4 quadrant measurements in IT, TN, and TT networks
- 3 voltage and 3 current measurement inputs
- 2 measurement inputs for differential current measurement
- Measurement according to IEC61000-4-30
- Scan speed: > 20kHz
- Analysis of harmonic pollution up to the 40th order
Features - UMG 103-CBM universal meter:
- 4 quadrant measurement
- Suitable for 4 leader systems
- 3 voltage and 3 current measurement inputs
- 2 measurement inputs for differential current measurement
- Measurement according to IEC61000-4-30
- Scan speed: > 20kHz
- Analysis of harmonic pollution up to the 40th order
Overview of universal energy meters
| Universal energy meters | ||||||||||
| Type | UMG 96RM-E | UMG 96RM-CBM | UMG 96RM-P | UMG 96RM-PN | UMG 96RM-M | UMG 96RM | UMG 96-PA | Extension module for UMG 96-PA / PQ-L | UMG 96-S2 | UMG 103 CBM |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| General specifications | ||||||||||
| Clock/memory | 256 Mb | 256 Mb | 256 Mb | - | - | - | 8 MB | - | - | 4 MB |
| Mounting type | Panel 96 | Panel 96 | Panel 96 | Panel 96 | Panel 96 | Panel 96 | Panel 96 | - | Panel 96 | DIN-rail |
| Integrated logic | - | - | - | - | - | - | - | - | - | - |
| Power Quality | ||||||||||
| Harmonic analysis | 1..40 + THD | 1..40 + THD | 1..40 + THD | 1..40 + THD | 1..40 + THD | 1..40 + THD | 1..40/25 + THD (U/I) | - | 1..15 + THD | 1..40 + THD |
| Dips, peaks and transients | - | - | - | - | - | - | - | - | - | - |
| Flicker | - | - | - | - | - | - | - | - | - | - |
| Safety measurement (RCM) | v | - | - | v | - | - | Option | v | - | - |
| IEC61000-4-30 | - | - | - | - | - | - | - | - | - | - |
| Reports EN50160/61000-2-4 | - | - | - | - | - | - | - | - | - | - |
| Accuracy V/A(%) | 0,2 | 0,2 | 0,2 | 0,2 | 0,2 | 0,2 | 0,2 | - | 0,2 | 0,2 |
| Accuracy kWh | 0,5s | 0,5s | 0,5s | 0,5s | 0,5s | 0,5s | 0,5s | - | 0,5s | 0,5s |
| Interfaces en protocols | ||||||||||
| RS485 (Modbus) | -/v | -/v | -/v | -/v | -/v | -/v | v | - | v | v |
| Ethernet | v | - | - | 2x | - | - | - | v | - | - |
| USB | - | v | - | - | - | - | - | - | - | - |
| Profibus DP | - | - | v | - | - | - | - | - | - | - |
| M-bus | - | - | - | - | v | - | - | - | - | - |
| PROFINET | - | - | - | v | - | - | - | -- | - | |
| BACnet IP | Option | - | - | - | - | - | - | - | - | - |
| Inputs and outputs | ||||||||||
| Digital in-/outputs | 3/5 | 4/6 | 4/6 | 3/5 | -/2 | -/2 | 3/3 | - | -/1* | -/- |
| Analog in-/outputs | 2/- | -/- | -/- | 2/- | -/- | -/- | Option/1 | 3/- | -/- | -/- |
| Voltage / current channels | 4/4 | 4/4 | 4/4 | 4/4 | 4/3 | 4/3 | 4/3 | -/1 | 4/3 | 3/3 |
| Auxiliary voltage and article numbers | ||||||||||
| 90...277Vac/90...250Vdc | JA101912 | JA100792 | JA101910 | JA100085 | JA101911 | JA101905 | JA100284 | JA900119 | JA100400 | JA500138 |
| 90...277Vac/90...250Vdc | JA100104 | JA100126 | JA100133 | JA100134 | JA100105 | JA100101 | JA100304 | - | - | - |
*) For pulse, kWh and kVARh only

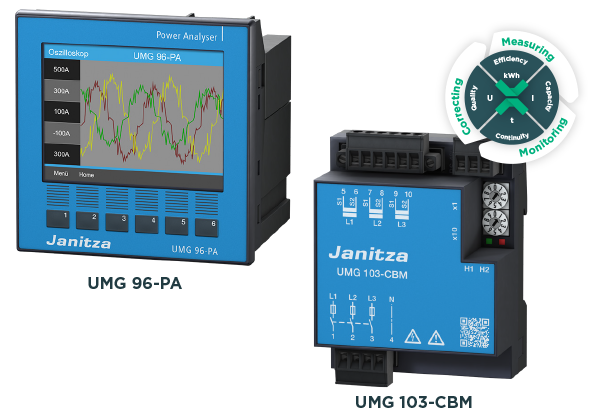

Janitza UMG 96-PA Power Analyzer
The universal measurement device UMG 96-PA is the multifunctional powerhouse from Janitza. The meter combines 4 functions in one module. The UMG 96-PA is suitable for energy management, MID meters, power quality monitoring and RCM monitoring. The technical possibilities and the colour screen make this meter, in combination with the 96 x 96mm size, unique in its class. The meter's modular design allows for easy customisation to suit your preferences.
Modularly expanded with 2 analogue inputs
Choose between utilising it selectively as 0-20 mA analogue inputs (e.g., for DC measurement) or as an RCM measurement input with cable break detection and additional temperature measurement.
Applications Janitza UMG 96-PA:
- Energy monitoring according to ISO50001
- Consumption measurements (kWh) possibly according to MID
- Determine capital scope and monitor insurance values
- Power quality monitoring
- RCM monitoring (earth fault monitoring)
- Monitoring DC networks (DC)
View Janitza UMG 96-PA in the Product PortalAsk your question
Features - Janitza UMG 96-PA
Characteristics - UMG 96-PA:
- Direct connection up to 690V CATIII in TN and TT systems
- High resolution color screen with intuitive operation
- Integrated scope function and line writer
- 1 analogue output 0-20mA or 4-20mA
- 3 digital inputs and 3 digital outputs
- Serial RS485 interface with Modbus RTU protocol
Features expansion module UMG 96-PA:
- Ethernet IP interface with Modbus TCP protocol
- Ethernet gateway function
- 4th current transformer input (for measurement in the neutral conductor)
- Temperature measuring input PT100, PT1000, KTY83, KTY84
- 2 analogue inputs to use for RCM measurement or DC measurement via 0-20mA
High resolution full color screen
The Janitza UMG 96RM-PA is equipped with a full-colour, high-resolution screen with intuitive operation. In addition to the visualisation of the standard measured values, the harmonic analysis can also be seen via the colour screen. The meter is provided with a 'scoop function', which means that disturbances in the network can be found immediately.
Color screen functions:
- Easy configuration through user-friendly user interface
- Real-time visualisation of all conceivable quantities
- Vector diagram with real-time visualisation of currents and voltages
- Integrated consumption manager
- Embedded line writer
- Spectrum analyser (harmonic analysis) for all currents and voltages
- Scoop function for fast analysis of power quality
- Status display inputs and outputs
- Visual programming of the logical function
Janitza UMG 96RM - Universal measurement device
Which Janitza UMG 96RM universal meter do you choose!?
The UMG 96 series by Janitza consists of seven universal meters with unique characteristics. The meters all digitally display the three measured phases. Through various communication protocols, it is possible to request the information decentrally.
A meter for every application
The universal meters have various different properties so that there is a meter for every application. The basis of every meter is the UMG 96RM.
Modbus address setting on universal meter UMG 96S and UMG 96-RM
Janitza UMG 96RM
Characteristics:
- Multifunctional power analyser
- Modbus RTU communication (via RS485)
- Measure to the 40th harmonic
- THD-U / THD-I
- 2 digital outputs, 3 digital inputs
- Online measurement values
Janitza UMG 96RM-P - Profibus
Characteristics:
- Profibus communication (instead of Modbus RTU)
- USB communication
- Internal memory of 256MB in which historical measured values ??can be saved
- 4th flow measurement input
- 6 digital outputs, 4 digital inputs
Janitza UMG 96RM-M - M-Bus Universal Meter
Characteristics:
- M-Bus communication (instead of Modbus RTU)
Janitza UMG 96RM-E - Ethernet universal meter
Characteristics UMG 96RM-E:
- Ethernet connection (Modbus TCP / IP)
- Modbus gateway (modbus master)
- Internal web server
- Internal memory of 256MB in which historical measured values can be saved
- 4th flow measurement input
- RCM measurement
- 5 digital outputs or 2 digital outputs and 3 digital inputs
- 2 temperature inputs
- Detection of short interruptions (> 200msec)
Setting universal meter UMG96RM-E to a fixed IP address
Janitza UMG 96RM-PN - PROFINET universal meter
Characteristics UMG 96RM-PN PROFINET :
- 5 digital outputs or 2 digital outputs and 3 digital inputs
- 2 temperature inputs
Janitza UMG 96RM-CBM - Clock Battery Memory
Characteristics UMG 96RM-CBM - Clock Battery Memory:
- Internal memory of 256MB in which historical measured values ??can be saved
- 4th flow measurement input
- 6 digital outputs, 4 digital inputs
Fault current monitoring - Janitza RCM
UMG 96-S2 - universal energy meter
To conduct accurate analysis and draw conclusions regarding energy consumption, load, and voltage quality of your installation, it's essential to measure throughout the entire setup..
To locate them, measurements need to be conducted at numerous points within the electrical installation. The finer the measurements, the more advantageous. The new UMG 96-S2 emerges as an optimal solution for this purpose. This meter stands out as a versatile tool, apt for measuring and monitoring various electrical parameters.
Characteristics UMG 96-S2:
- Suitable for TN and TT networks with 1-5 A current transformers
- High measuring accuracy 0,5S (... / 5 A current transformer)
- Tariff switching
- Easy integration into higher-level systems via Modbus RTU or pulse output
- Simple to use
- Compact 96 x 96 mm design and very low installation depth
- Extensive possibilities for reading out, visualising data with the software GridVis
.png "UMG 96-S2 universal energy meter - Janitza Electronics")
UMG 103-CBM - Universal meter
Janitza's UMG 103-CBM universal meter is a versatile device designed for DIN rail mounting. With its RS485 interface utilising Modbus RTU protocol, universal meters offer highly cost-effective networking solutions. The UMG 103 series boasts immunity to EMC interference, ensuring reliable operation.
Features UMG 103-CBM universal meter:
- Multifunction meter for DIN rail mounting
- Modbus RTU communication (via RS485)
- Measure until the 25th harmonic
- THD-U / THD-I
- Online measurement values
Temporary or permanent measurement?
For a company, insight into the electrical installation is a must. This can be achieved through measurements: temporary or permanent. Which one should you choose? Is a temporary measurement a logical choice? The answer is no. A temporary measurement is essentially a snapshot of the installation—just a moment in time.
From snapshot to continuous insight
Production processes, weather conditions, and seasons influence power consumption, and faults occur without warning. A permanent measurement is like a film that captures everything needed for analysis and reporting.
The 10 advantages of Janitza universal energy meters
- A correct and stable power measurement with electronic loads
- Due to the wide range of Janitza, a suitable meter is available for every spot in your installation
- Current measurement in the neutral conductor prevents overload
- Integrated differential current measurement prevents danger and fire
- Embedded web interface with all EMS functions for PC, tablet or smartphone
- Integrated transformer temperature measurement
- Readout in DCEM Cloud via the mobile network
- Easy integration into existing systems
- Designed and manufactured in Germany, long service life and hardly any failures
- Free customised advice
