RRFID BASIC C S U C | RFID safety switch, Uniquely coded, M12 Connector, 22 mm wide

Welke lengte heeft u nodig?
/
U heeft 0 stuks nodig voor 0 euro incl. BTW
RRFID BASIC C S U C
Ask for quotationAdd to wish list
 Delivery time: approx. 4 weeks
 Log in to see price
Add to favorites
  • Product description and specifications
  • Documents
  • Accessories
  • Ask a Question

Barcode

Product description

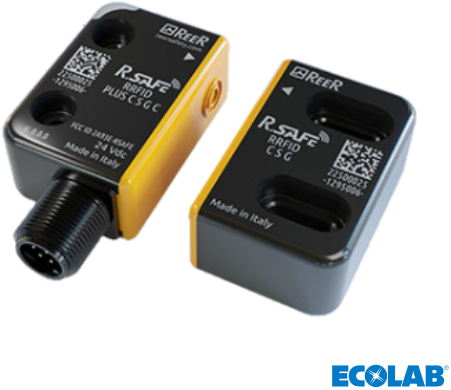

The ReeR Safety R-SAFE RFID safety switch offers optimal safety in industrial environments through the use of RFID technology. This switch can serially connect up to 16 RFID sensors (Pro and Plus versions only), enabling an efficient and cost-effective installation as there is no need to lay a cable from each sensor. The switch is fully mechanically compatible with other safety sensors from ReeR Safety, such as the Magnus RFID and Magnus MG "S" series, and can be seamlessly integrated with the Mosaic safety PLC.

Available in 3 versions
The RFID series safety switches are available in 3 different versions:
  • Basic: The Basic series has an automatic restart, serial connection not possible
  • Pro: The Pro series has an automatic restart and enables serial connection (max. 16) with status per sensor
  • Plus: The Plus series has both a manual and an automatic restart and enables serial connection (max. 16) with status per sensor possible


Flexible application possibilities
Three different coding types, namely individually coded, uniquely coded, and actuator coded, provide flexible application possibilities. ReeR Safety has taken special measures against tampering, such as screw covers and unique coding. The R-SAFE RFID safety switch complies with the highest safety standards SIL 3 - SILCL 3 and PL e - Cat. 4 and is applicable in various industries, including food & beverage, packaging, pharmaceuticals, printing, paper, logistics, chemical industry, and injection moulding.

Features of R-Safe RFID contactless switches:
  • RFID technology enhances safety through communication with authorized actuators
  • Connect up to 16 RFID sensors in series for efficient installations
  • Meets the highest safety standards SIL 3, SILCL 3, PL e, Cat. 4
  • Suitable for use in various industries
  • Secured against tampering with covered screws and unique coding
  • User-friendly with multi-status LED and diagnostic output

Documents

Specifications

CodingUniquely coded
PrincipleRFID
Switching distance12 mm
HousingPlastic
Output2 OSSD
1 diagnose
Connecting typeConnector M12 5-pin
HousingCube
SeriesR-Safe RFID
Protection standardIP 65
IP 67
IP 69K
CertifcationsCE
UKCA
ECOLAB
TÜV
SIL 3
BrandReer
CategoryNon contact safety switches
Product codeRR103925
Supplier code1295018
Unitst

Accessories

Mosaic M1 | PLC central module
 Delivery time: approx. 4 weeks
 Log in to see price
Product code: RR401896
Mosaic M1S | PLC central module
Always available 5
Product code: RR401382
Mosaic M1S COM | PLC central module
 Stock: 168 piece(s)
 Log in to see price
Product code: RR403866
CD5 | M12 connector, 5-poles, 0°, female, 5 m, pvc
 Stock: 1 piece(s)
 Log in to see price
Product code: RR900284
CFM 5P 5 | M12 Extension cable, 5 pôles, droit, femelle, 5 m
 Delivery time: approx. 4 weeks
 Log in to see price
Product code: RR901401
CRY12-S1 - Y-Splitter for first RRFID sensor
 Stock: 2 piece(s)
 Log in to see price
Product code: RR303869
CRY12-S2 - Y-splitter serving next RRFID sensor in series
 Stock: 2 piece(s)
 Log in to see price
Product code: RR303867
R-SAFE CF 8P 5 | M12 extension cable, 8-polig, 0°, female, 5 m, pvc
 Delivery time: approx. 4 weeks
 Log in to see price
Product code: RR004024
R-SAFE CFM 8P 5 | M12 extension cable, 8-polig, 0°, male/female, 5 m, pvc
 Delivery time: approx. 4 weeks
 Log in to see price
Product code: RR004027
